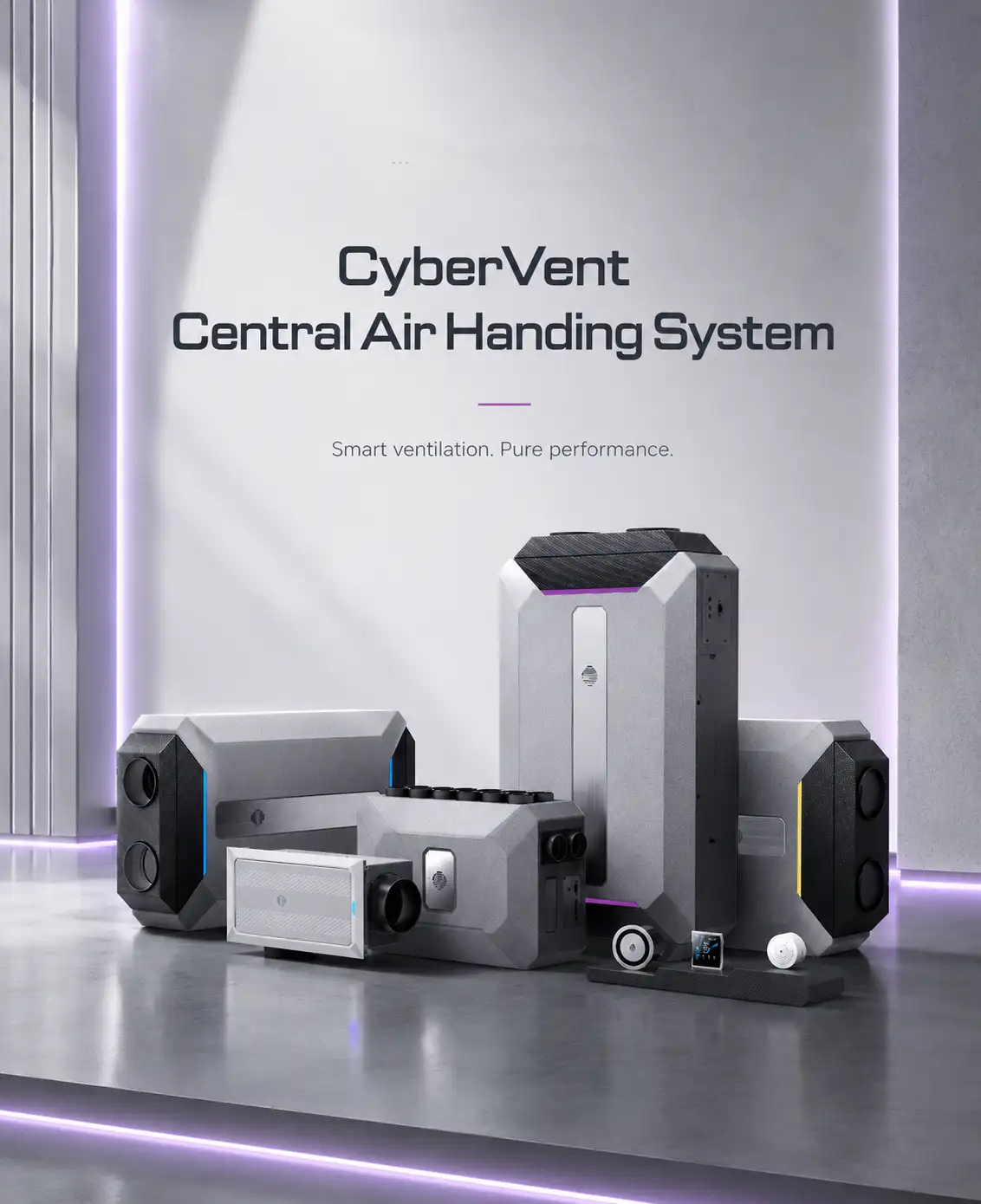

Cybervent - Central Air Handing System
One System – A Comprehensive Solution For All Indoor Air Quality Issues
150 – 520 m³/h
Airflow
19 – 47 dB(A)
Noise Level
70 – 86%
Heat Exchange Efficiency
60 – 240 m²
Suitable Coverage Area
PITSS Heat Exchange Technology
Improves whole-home energy efficiency
Independent Zone Control
Smart control for each temperature zone
99% Whole-System Filtration Efficiency
3-layer HEPA Stack filtration
4 Air Purification Modes
Adapts to different pollution types
Whole-Home Fragrance Creation
Custom scent for each space
Air Mixing Filter
Heat Exchange Main Unit
Electronic Air Distributor
Bluetooth Sensor
Intelligent Controller
Air Grille
More Efficient – More Cost-Saving
A Powerful Smart Ventilation System With Outstanding Performance

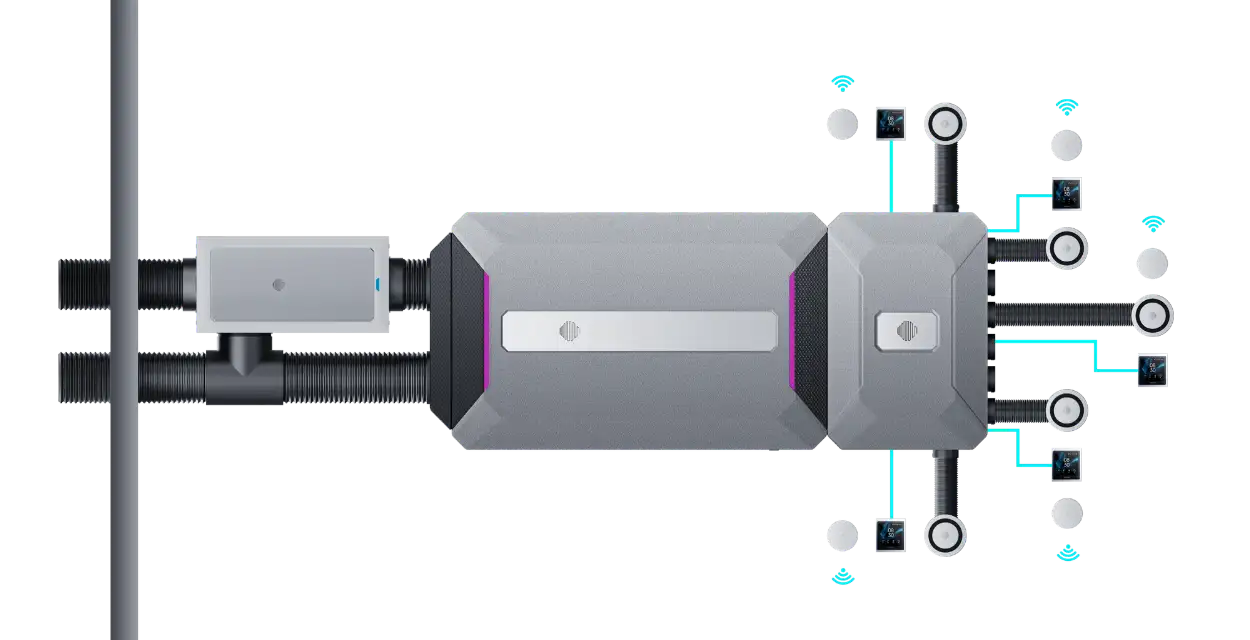

CyberVent is a comprehensive air treatment system that includes a Heat Exchange Main Unit, Air-Mixing Filter, Electronic Air Distributor, Air Grille, Intelligent Controler, and Bluetooth Air Sensor
Each module helps the CyberVent system operate more efficiently and save more energy, delivering an optimized air control experience like never before

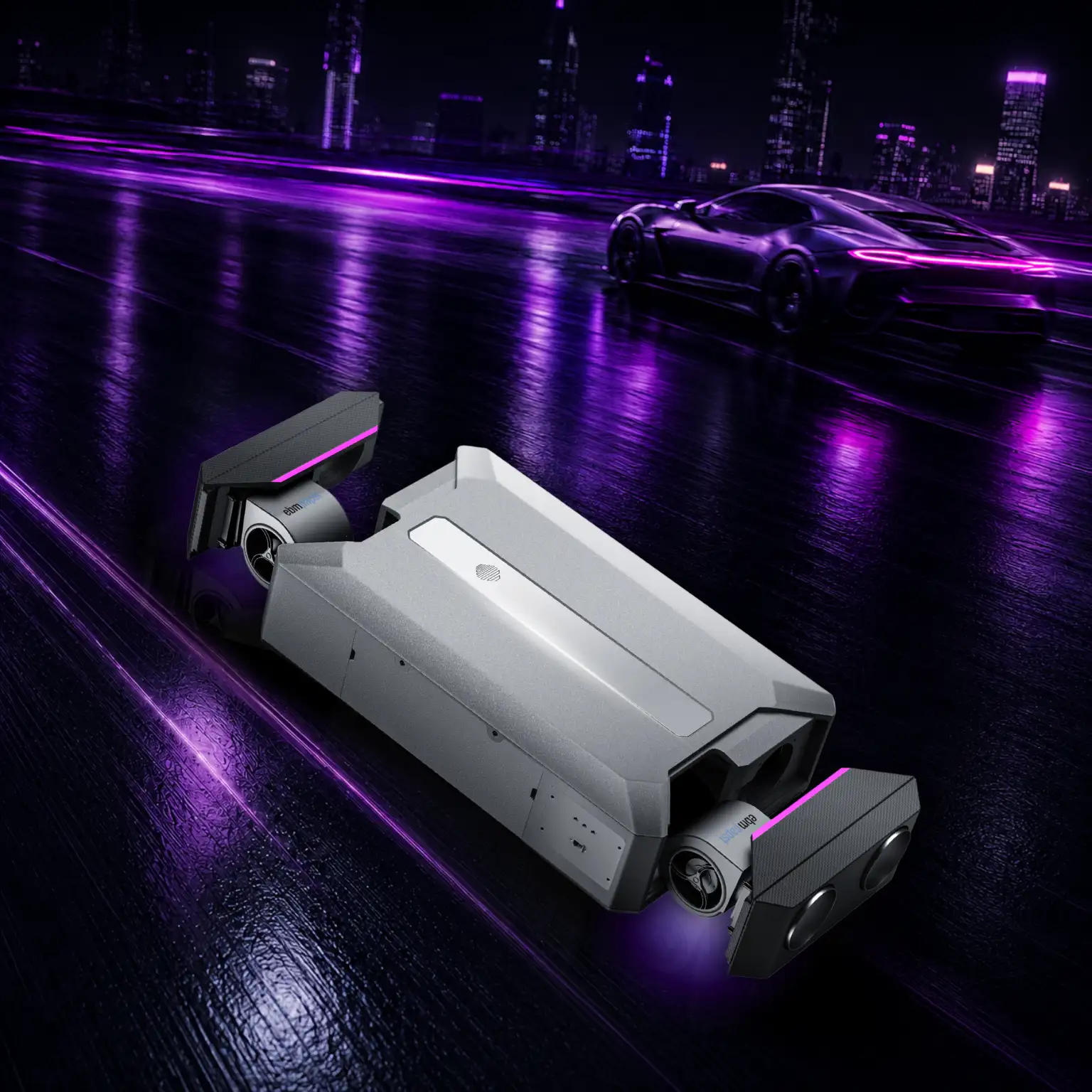

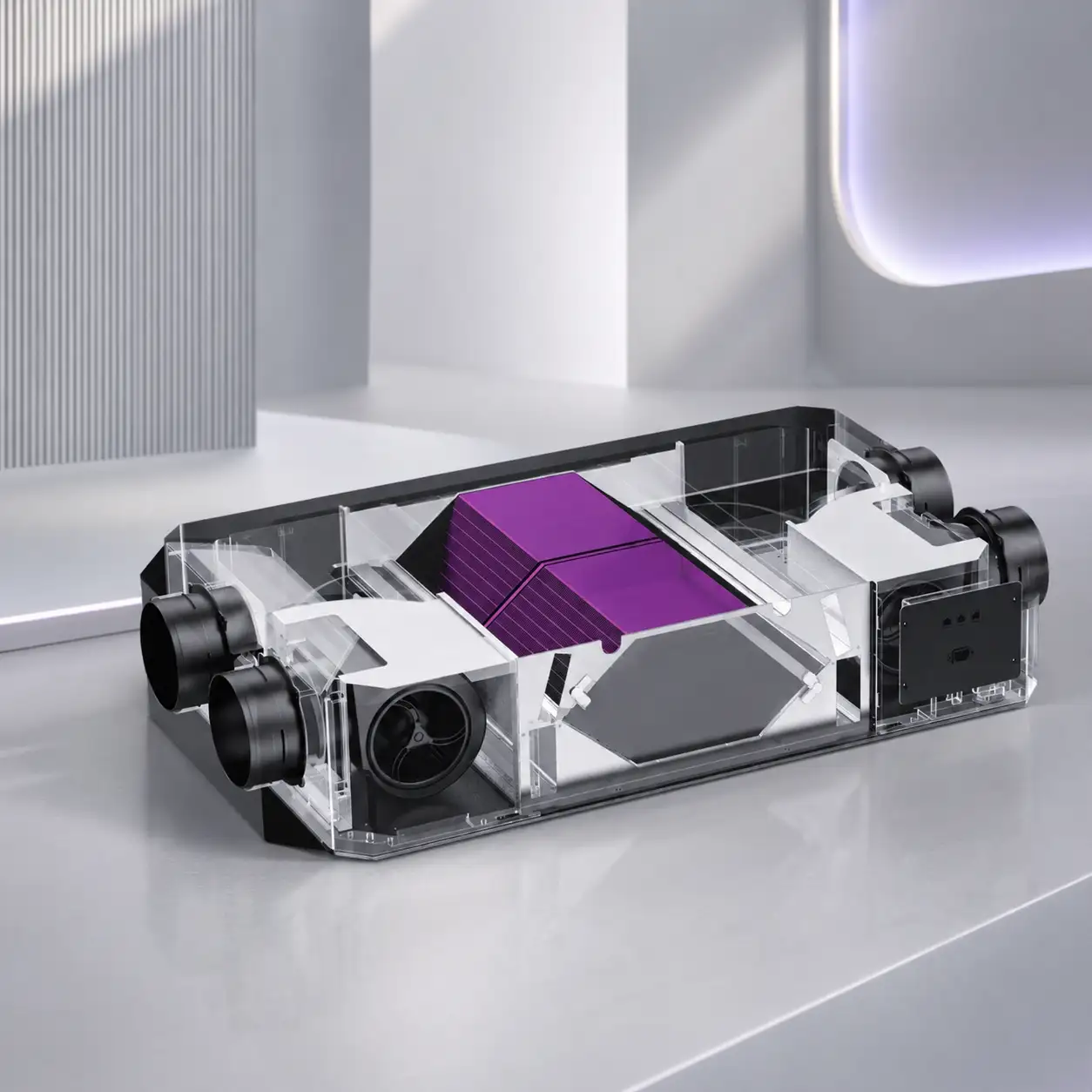

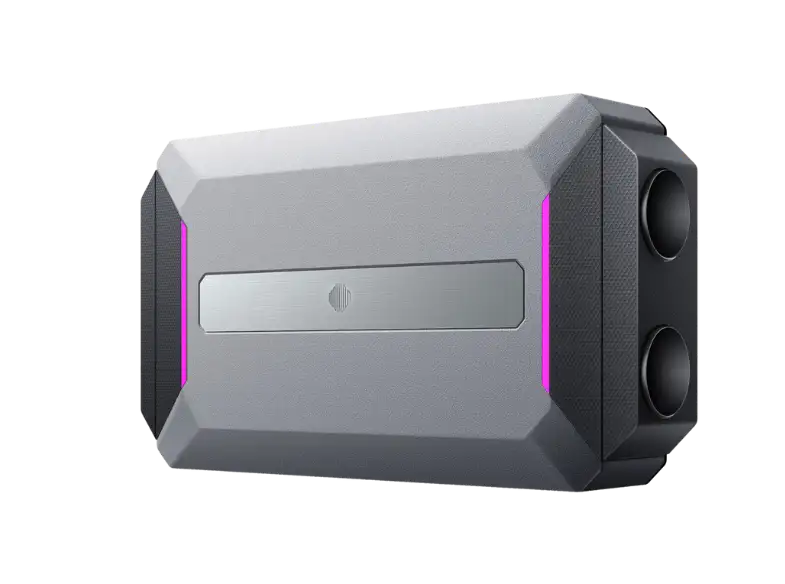

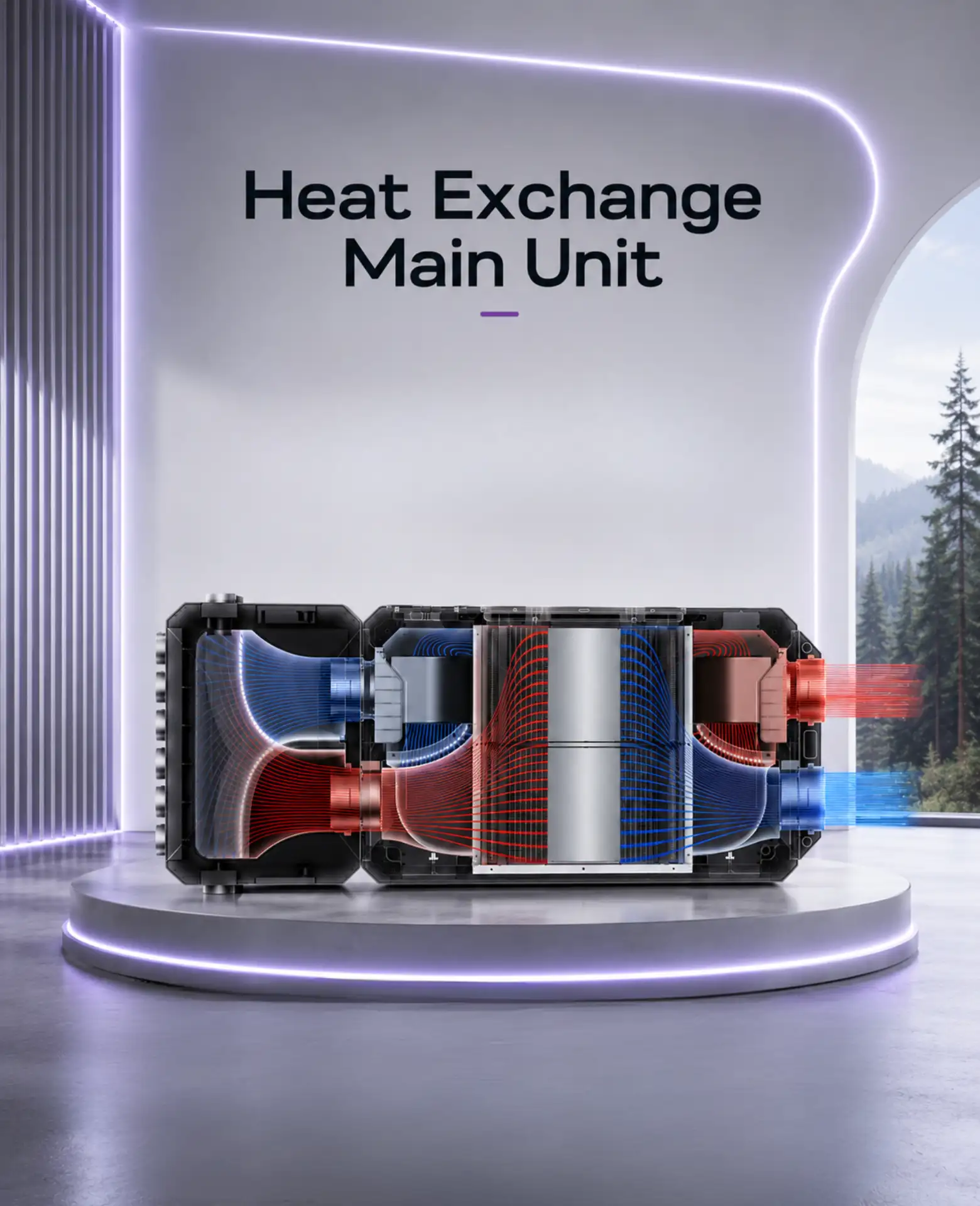

Heat Exchange Main Unit

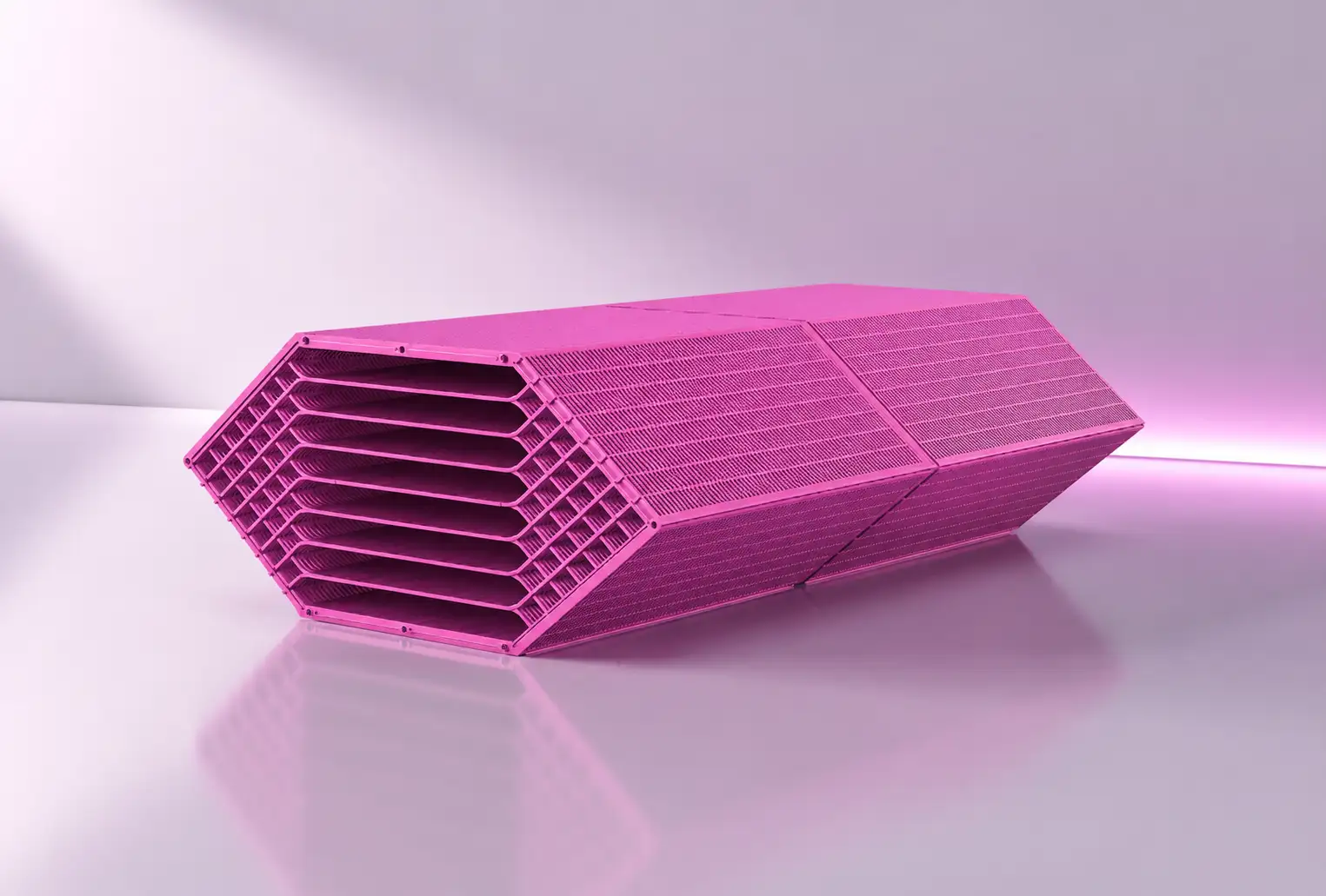

Full heat exchange core with polymer material, heat exchange efficiency up to 86%.
The whole machine is equipped with full heat exchange core as standard, in order to cope with different climate characteristics, we provide professional customized sensitive heat exchange core in order to obtain higher heat exchange efficiency.

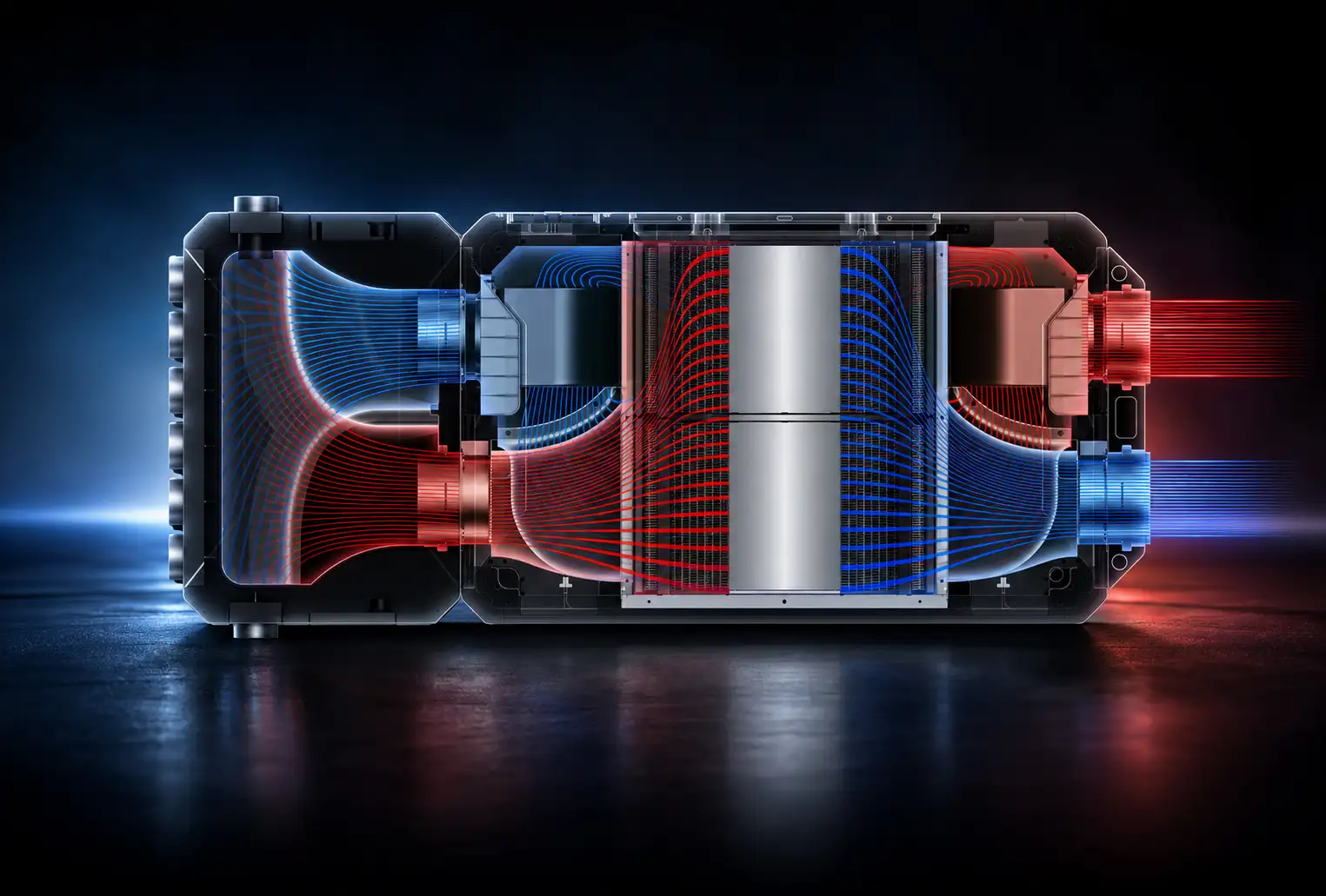

Thanks to the EC fan and ducts, we placed a full-size heat exchange core in the product. The full-size heat exchange core has a wider lateral flow path, which provides a wider airflow area and thus reduces the flow velocity and extends the time of airflow in the core to improve the heat exchange efficiency.
PITSS Heat Exchange Technology Doubles Efficiency
Energy saving – Effective air filtration – Air quality adjustment for each zone
Power Symmetry German Forward-Facing EC Fan
Patented Air Ducts And Full-size Heat Exchange Cores
Full Heat Exchange Core With Polymer Material, Heat Exchange Efficiency Up To 86%

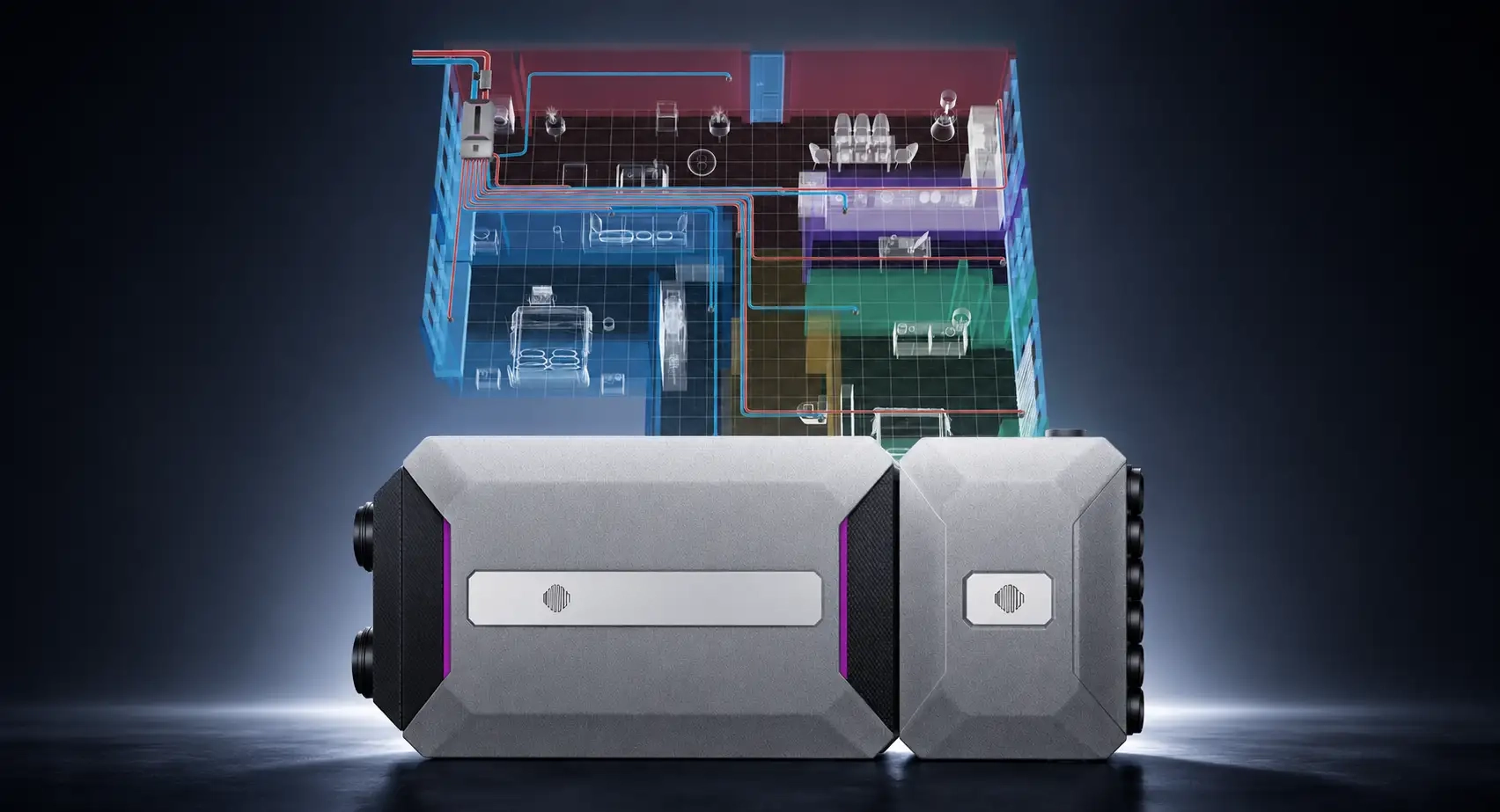

Patented Airflow Dynamic Distribution
Increases Airflow and Delivers Powerful Energy Savings
Precisely controls independent zones, doubles heat exchange efficiency, reduces noise at low speeds, and ensures comfortable airflow in every area

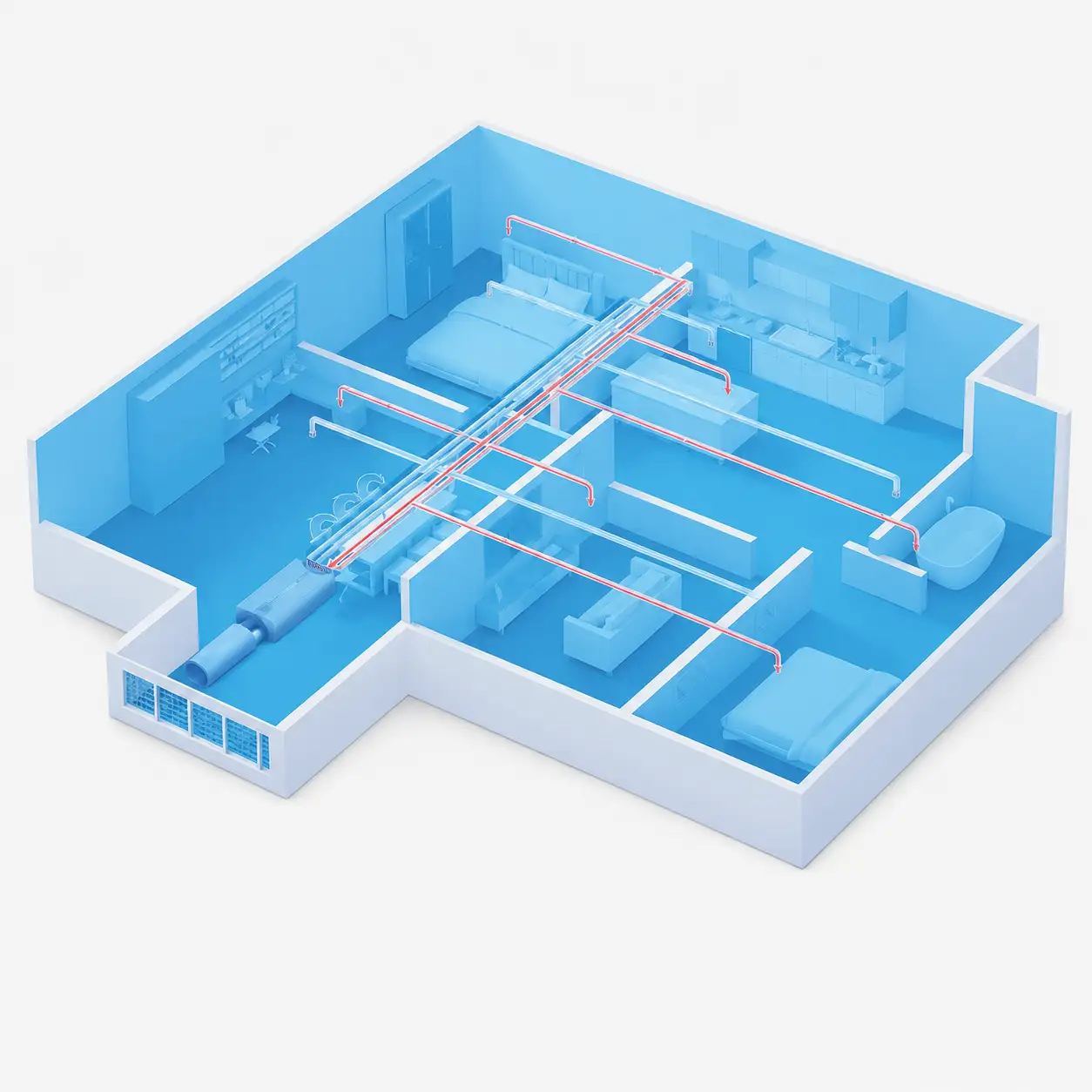

Daytime – Smart Zone Control
During the day, household activities take place across multiple areas, so the whole-home fresh air system operates for heat exchange and ventilation

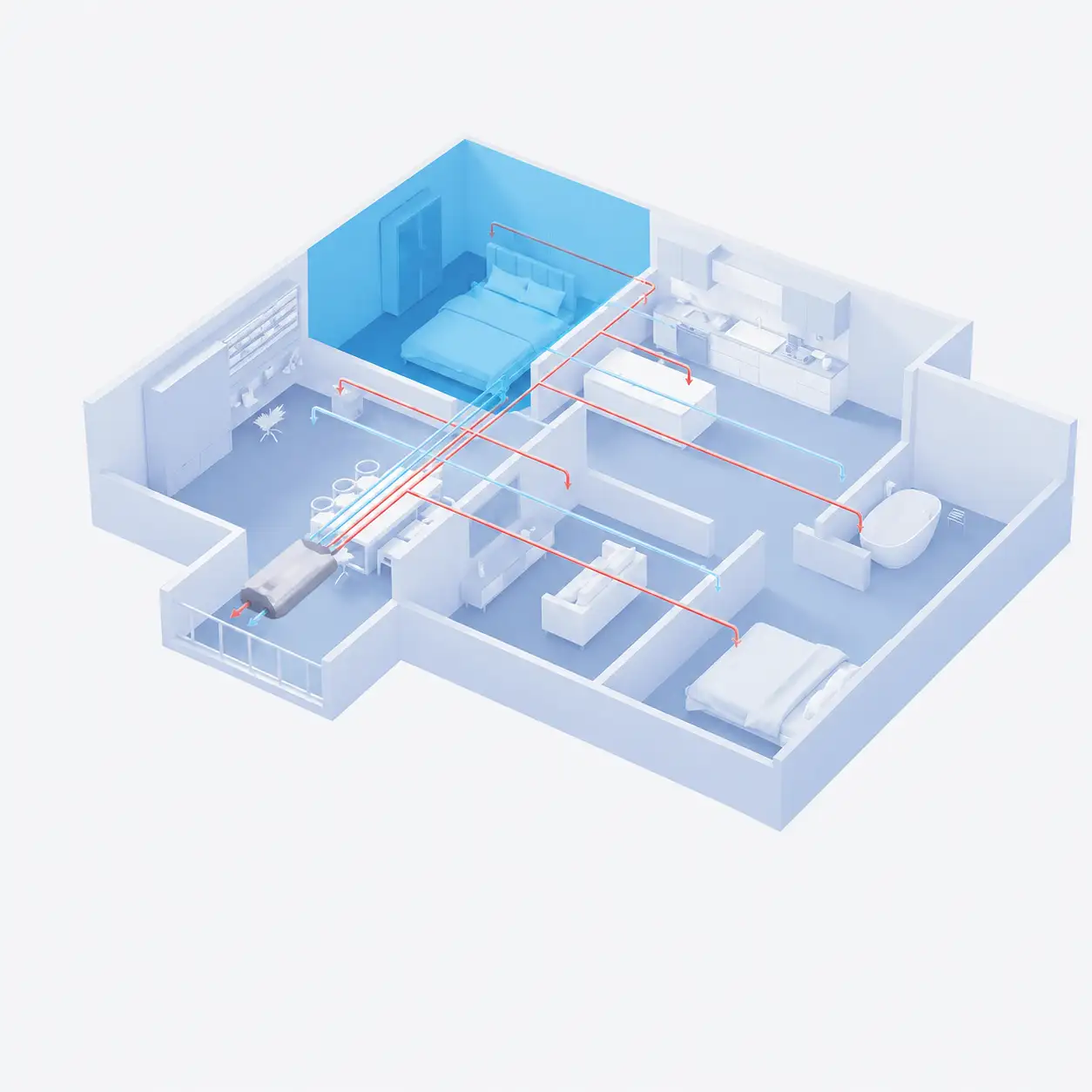

Nighttime – Smart Zone Control
At night, only the bedroom area is ventilated with fresh air, delivering higher heat exchange efficiency, greater energy savings, and quieter operation

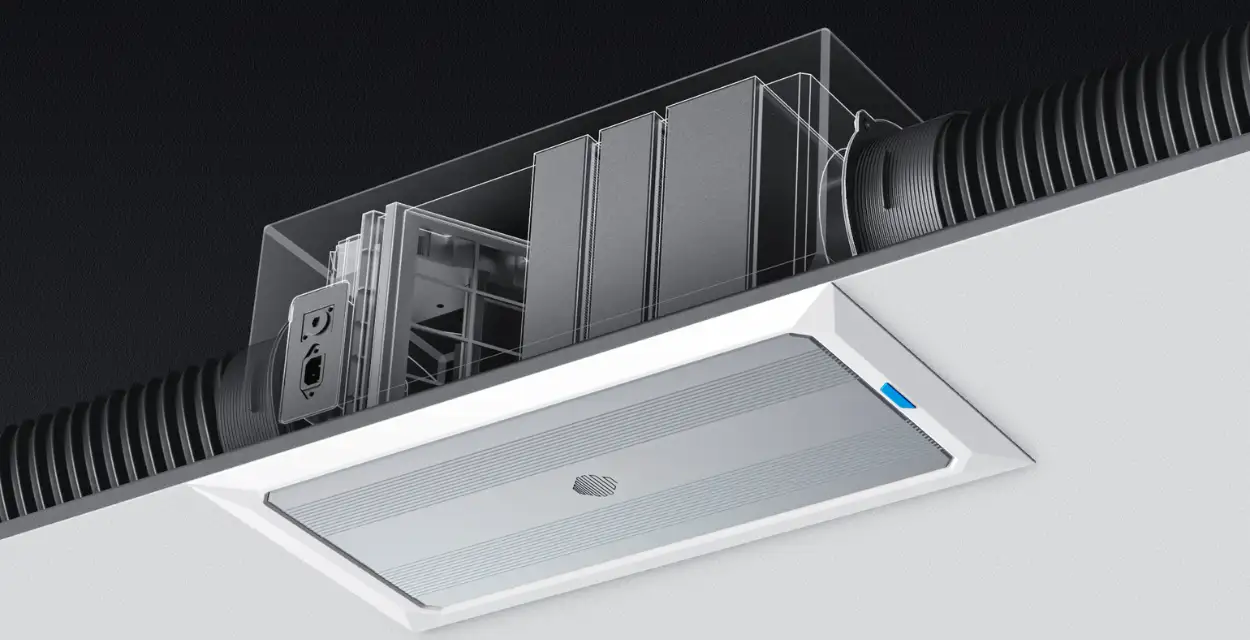

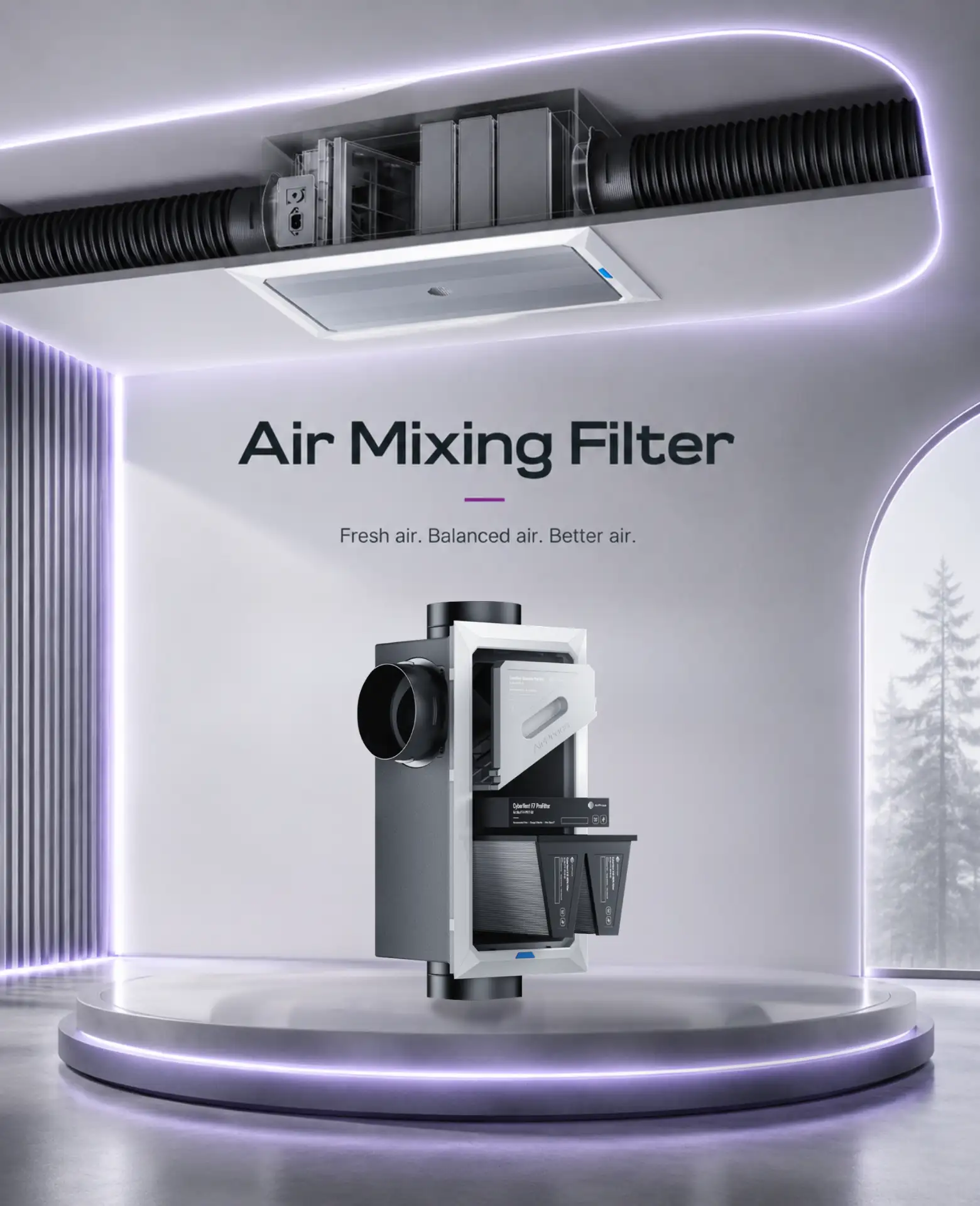

Air Mixing Filter
The Air-Mixing Filter combines advanced filtration with professional air mixing, enhancing the supply of fresh air for the central air treatment system.
Its HEPAStack filtration and heat circulation design help deliver cleaner air, balance temperature differences, and significantly reduce energy consumption.

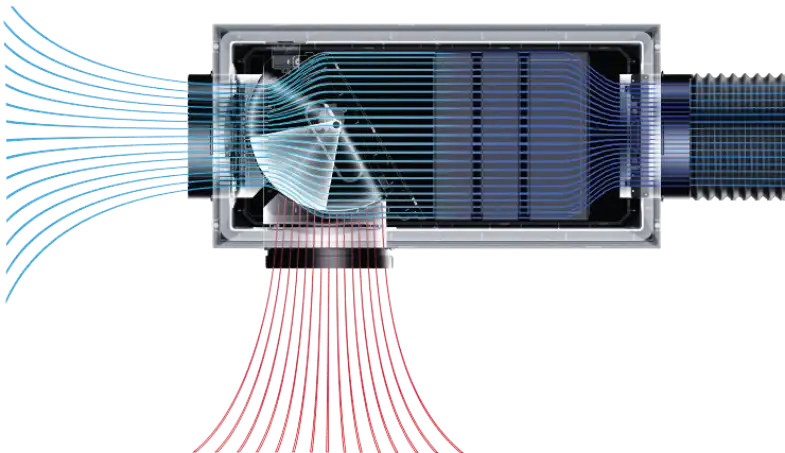

Intelligent Air Mixing Technology
Activates mixed-air and internal circulation modes to further save energy and reduce power consumption
4 VMC Purification Modes To Customize Your Air
CyberVent offers more diverse air system operating modes, while using more energy-efficient and effective solutions to address various indoor air pollution problems encountered in daily life.
Single-way Filtration Mode
Quickly removes indoor pollutants and prevents polluted air from entering
Two-way Filtration Mode
Maintains stable oxygen circulation while continuously filtering indoor and outdoor air
Circulation Filtration Mode
Isolates outdoor pollution and continuously purifies indoor air
Turbo Filtration Mode
Rapidly cleans heavily polluted areas with high-power airflow

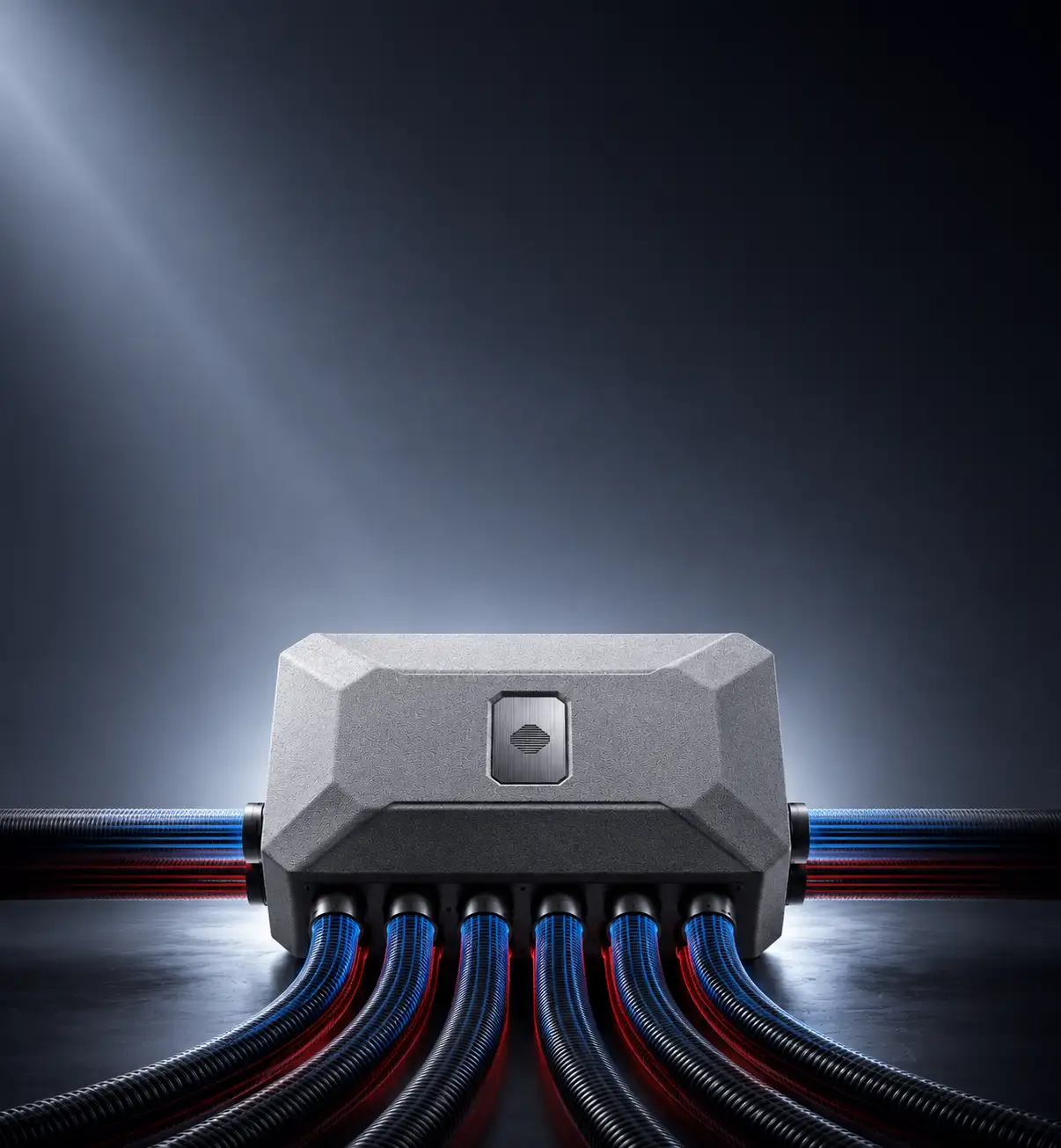

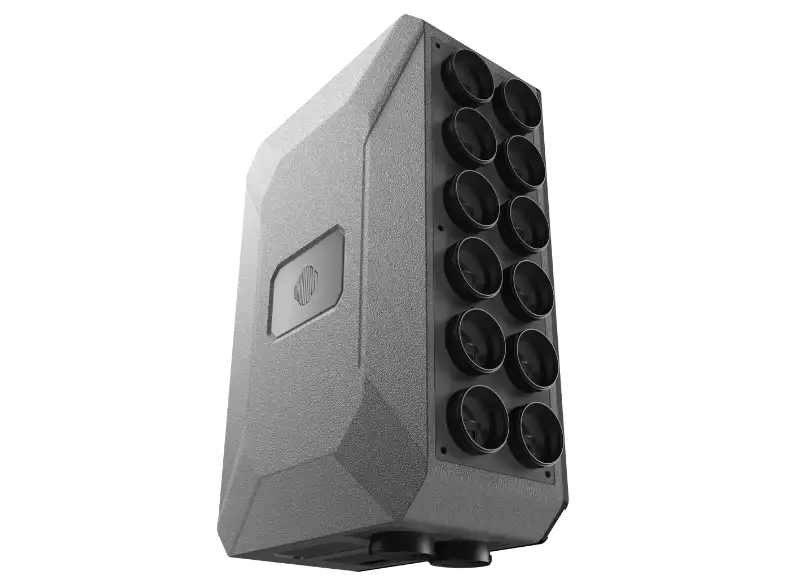

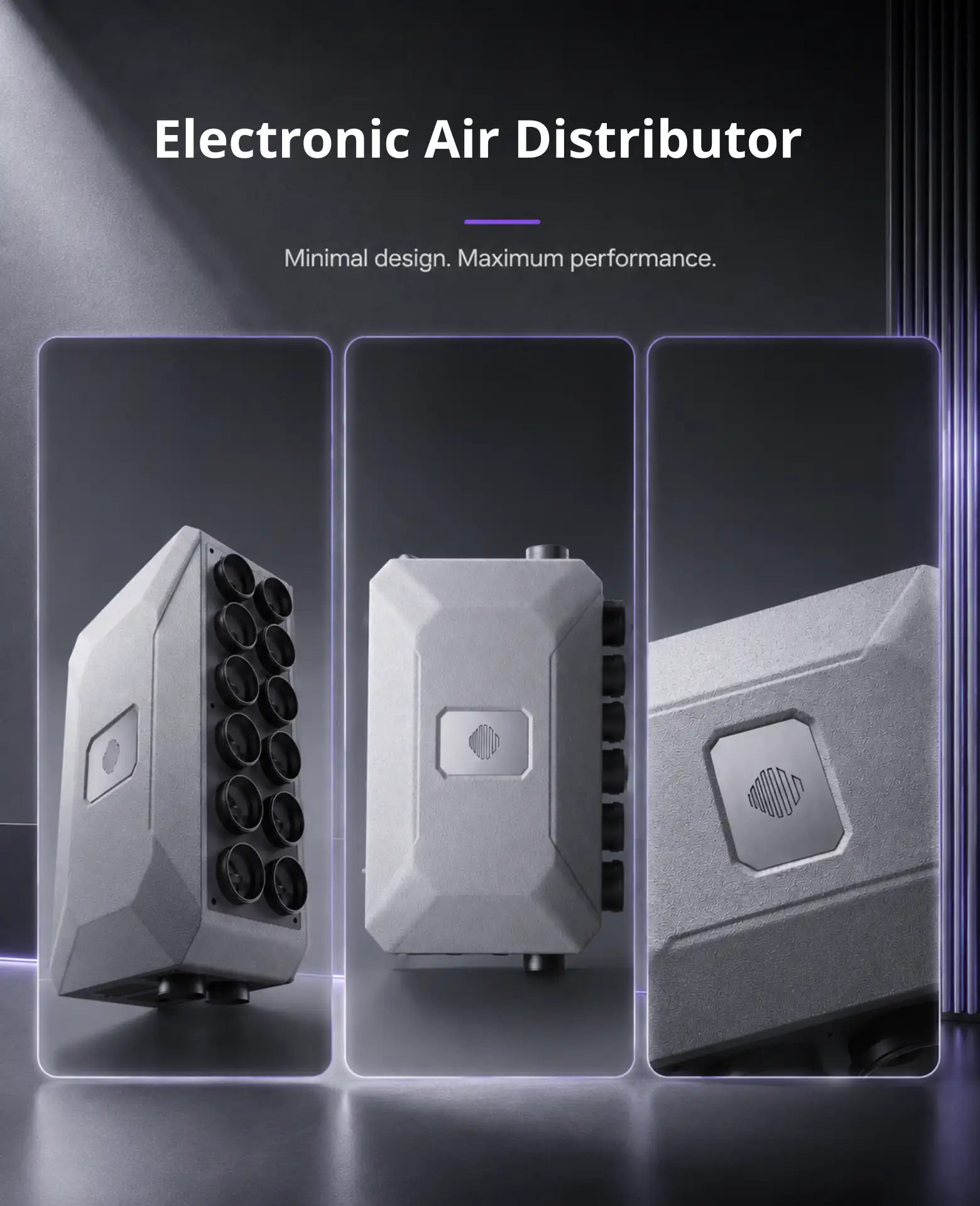

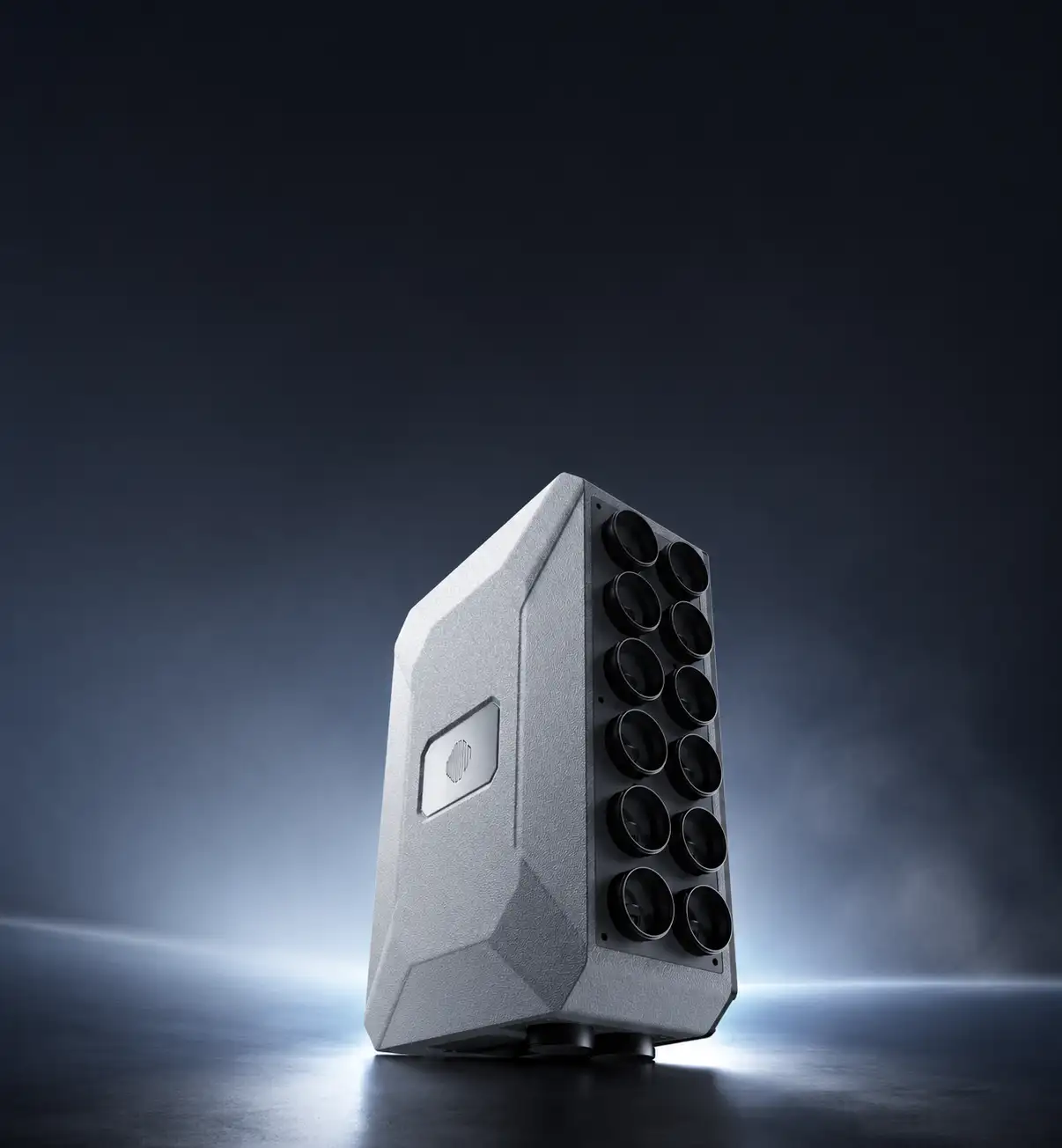

Electronic Distributor
Scientific design, powerful performance, smooth air supply and exhaust
16-Channel independent numerical control flow duct interface
CyberVent has its own patented zone control technology with 16 air ducts, 8 of which are air supply outlets and 8 are return air inlets. The airflow of each air port can be precisely adjusted by the touch screen installed in different temperature zones. And in the process of adjustment, the air volume of other air outlets is not affected.
Extend symmetrical design to air outlets
In order to thoroughly implement the symmetrical design, we designed the air outlet of the electronic distributor to be connected in pairs with air outlets on the top and return air at the bottom, which allows the pair to keep the length and number of corners as consistent as possible on the tube path. It also avoids the interconnecting pipelines at the distributor interface.
Direct connection of equipment, smaller installation area and lower noise
The special interface of our electronic distributor can be directly connected with the heat exchange main unit without pipe, which can directly reduce the installation area. At the same time, the EPP material used on electronic distributor has very excellent noise reduction capability, and can directly reduce the noise by 9dB.

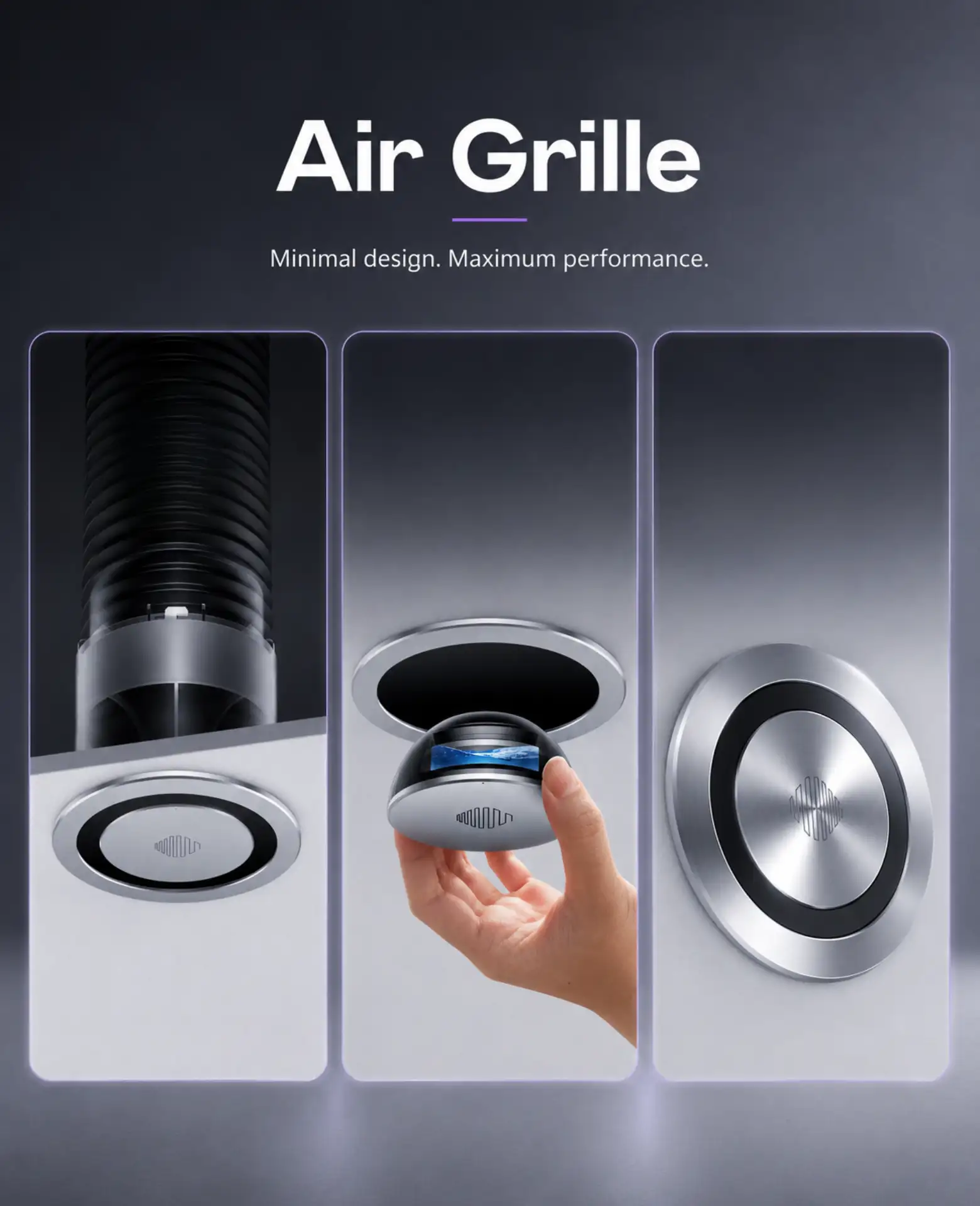

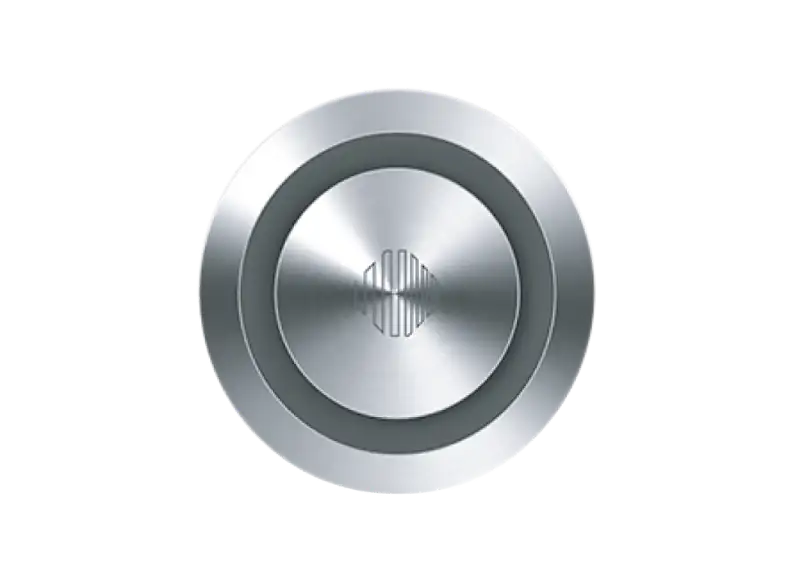

Fragrance Air Grille
Perfect the module design and small air outlet also has a big difference
Lower Resistance, Lower Noise, More Airflow
The 100mm interface design greatly expands the airflow area, significantly reducing airflow velocity. The centered dome stabilizes the airflow path, while the wind-break hood guides the airflow with low resistance and compresses it into an annular flow pattern, delivering air smoothly from the outlet and reducing direct wind sensation
The Scent of Home Within Reach

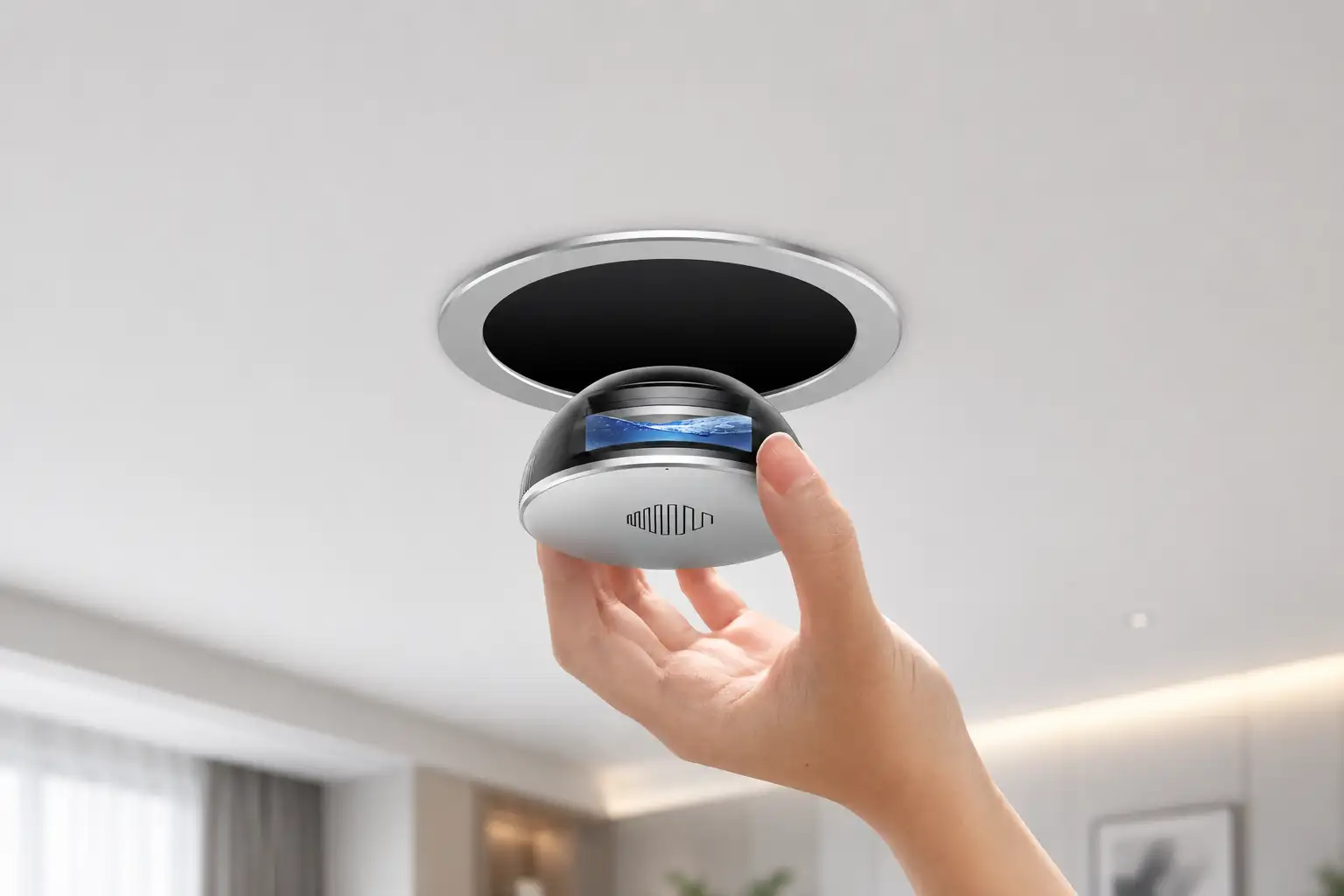

The magnetic fragrance box allows easy replacement of different fragrances. Rotate left or right to adjust the fragrance intensity

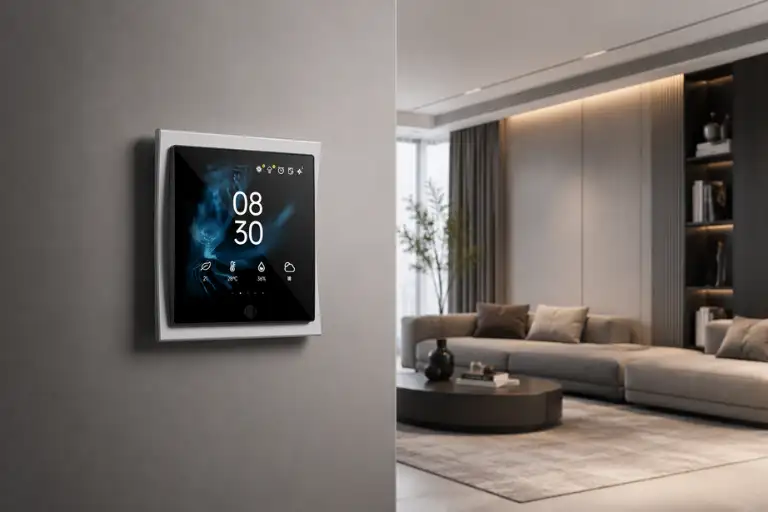

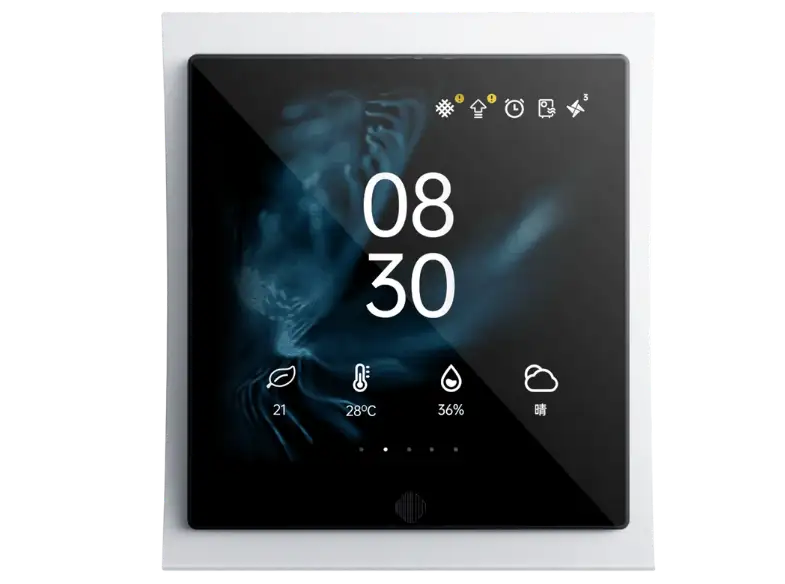

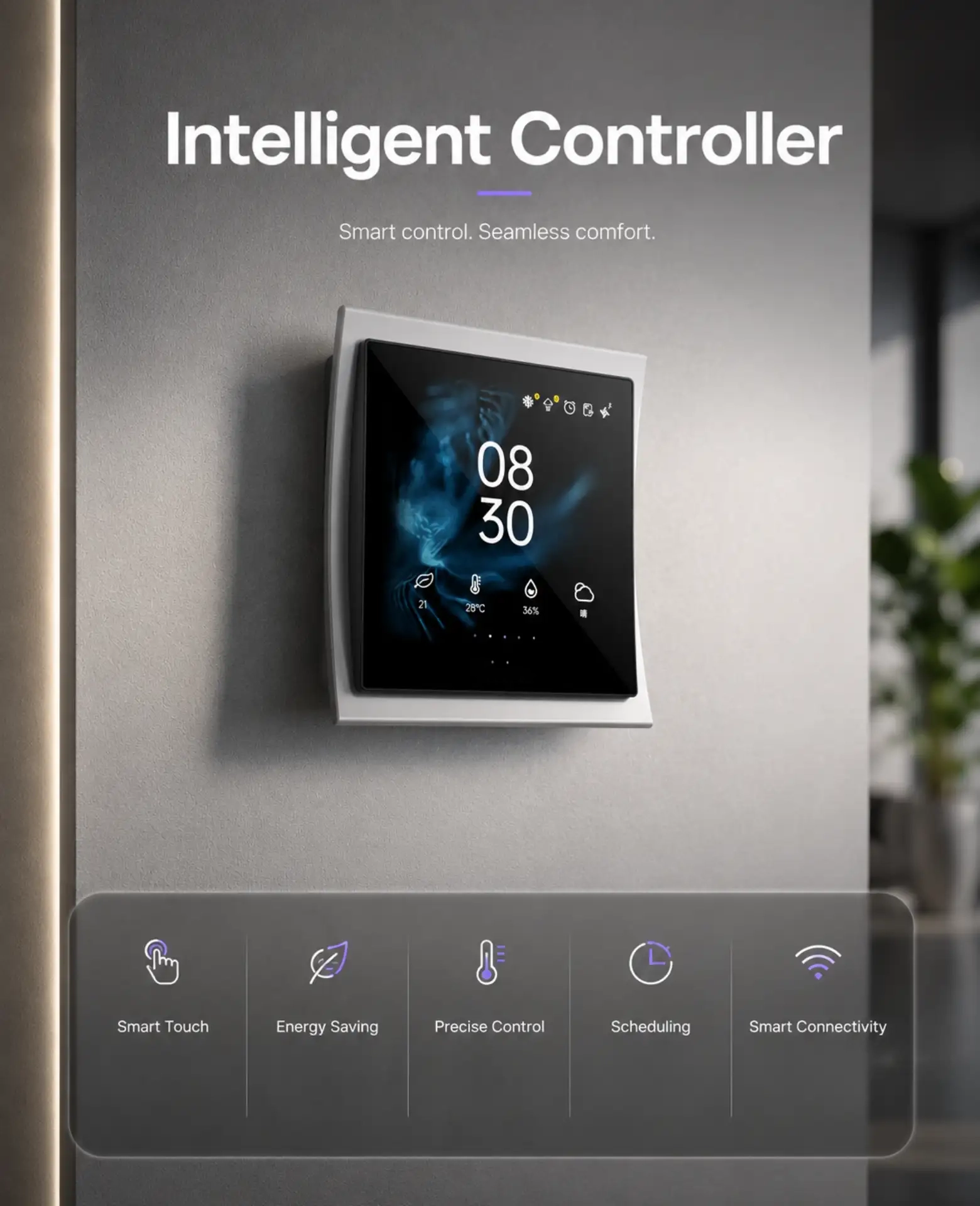

Intelligent Controller - A Fusion of Technology and Art
CyberVent intelligent control panel adopts 4.0-inch color IPS screen, equipped with capacitive touch with touch millisecond response, creating a smooth touch
The concise atmospheric appearance enhances the beauty of the environment and shows the taste of the whole home
Air butler is always with you
An intelligent control panel can be installed for each room. The panel can control the fresh air in that room individually and become the air steward of that room. (Up to 5 control zones are assigned to 5 control panels for the whole system)
One touch for all functions
Intelligent control panel realizes system air volume and pressure adjustment, room air volume setting, and can customize four purification modes, view outdoor weather air and view system working condition

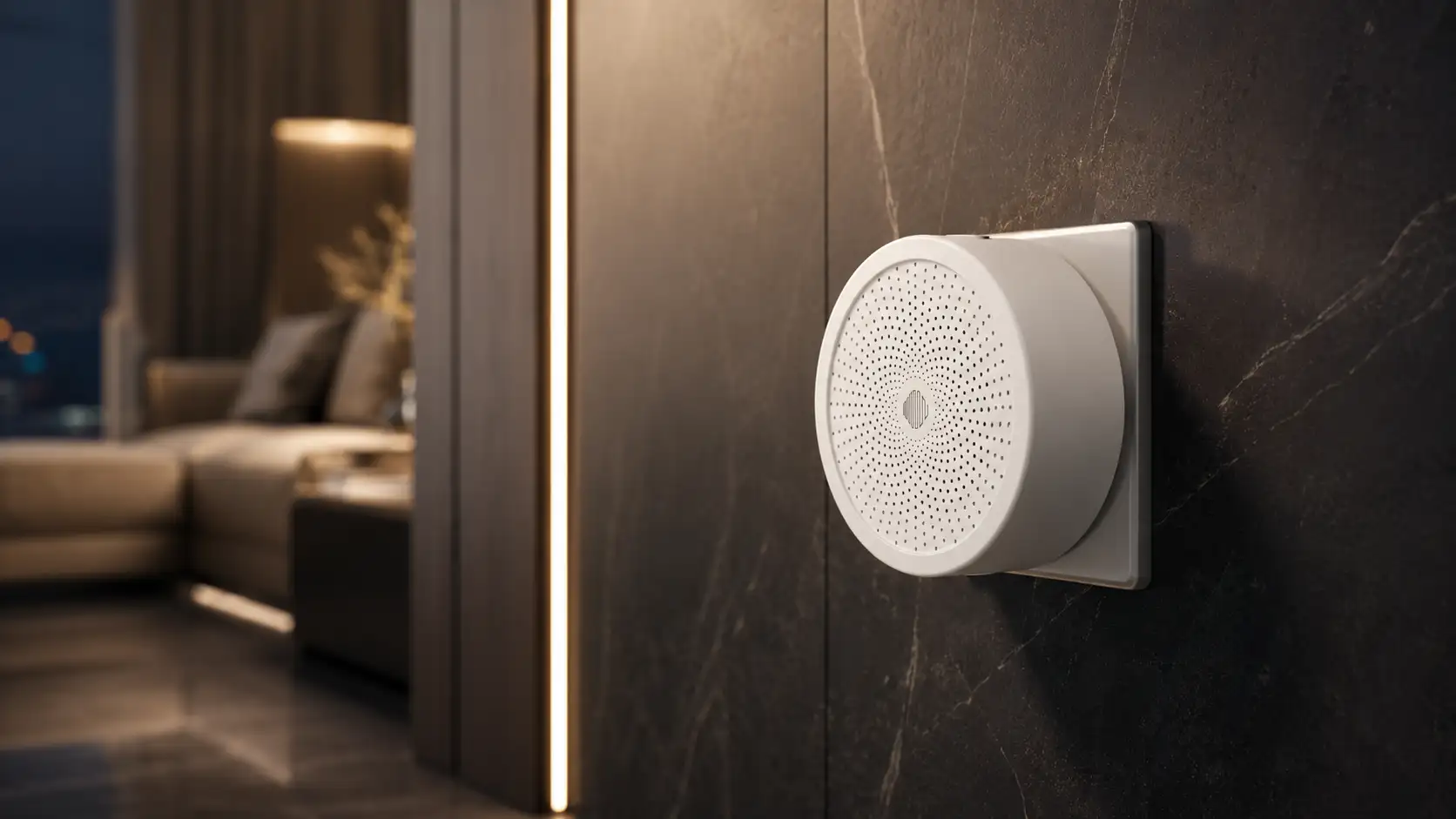

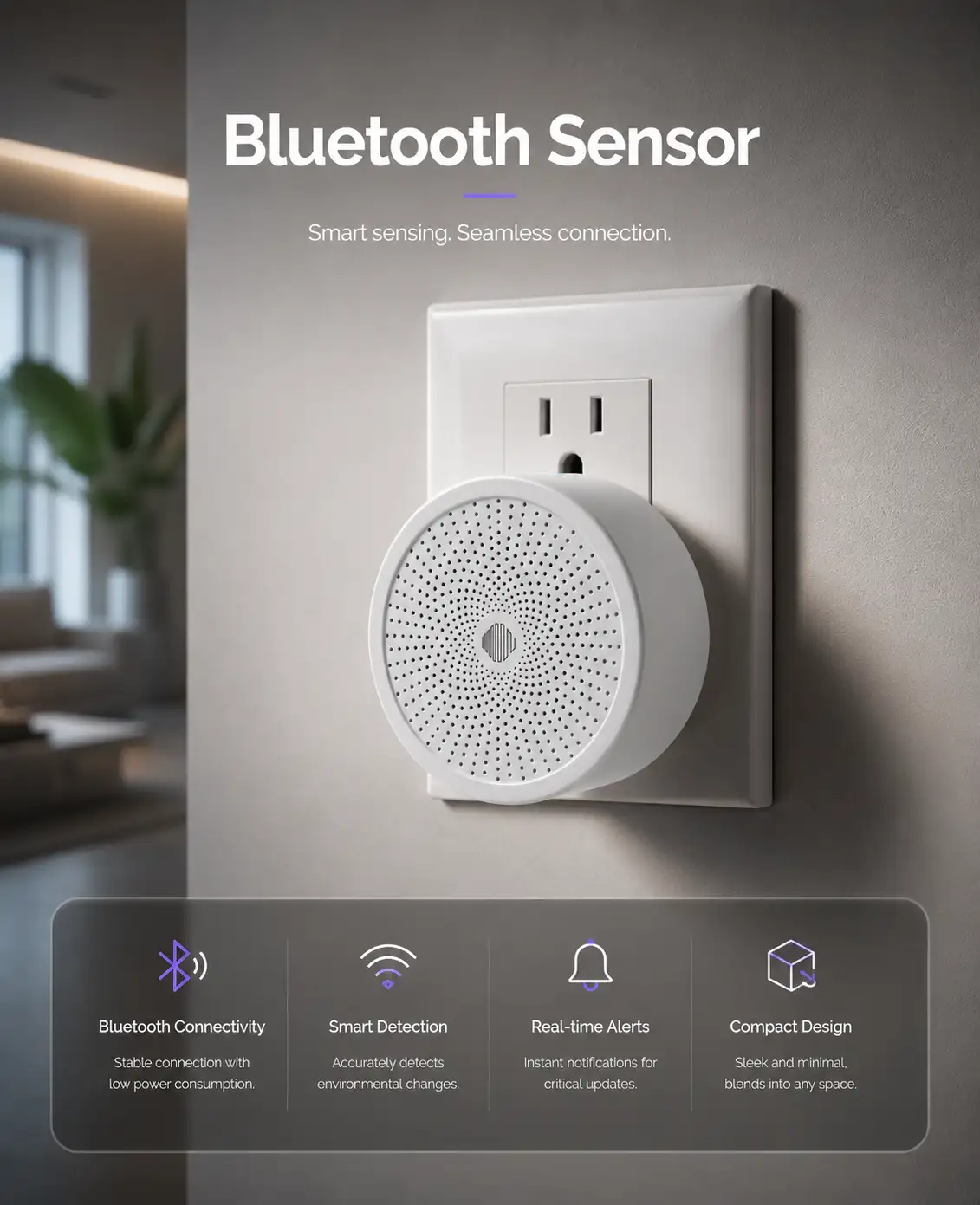

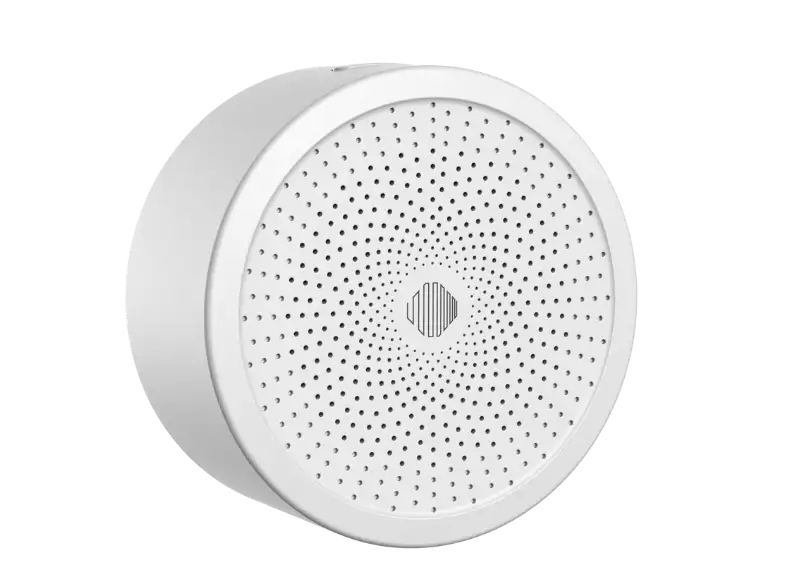

Bluetooth Sensor
CyberVent sensors can be paired with intelligent controllers to detect air quality in the area. Data includes temperature, humidity, CO2 concentration, and PM2.5 concentration. The sensor plugs directly into a three-hole socket and connects via Bluetooth without installation
